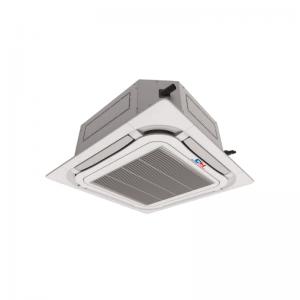

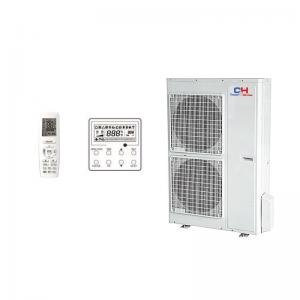

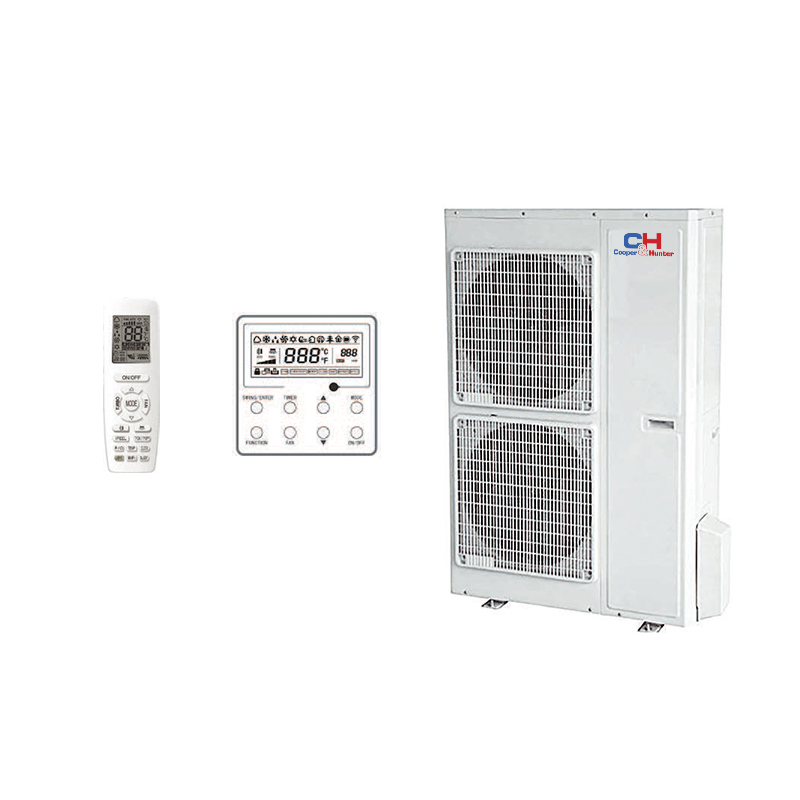

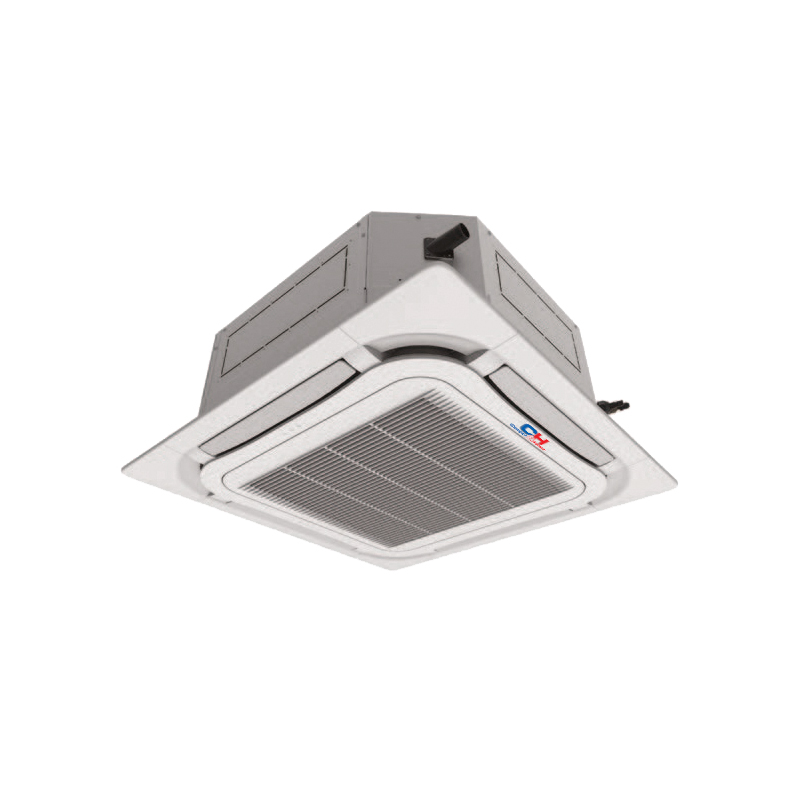

Nordic Commercial Series R Cassette Type (Inverter) CH-IC160RK/CH-IU160RM

cooling 14.5 kW
Heating 17.0 kW
Find out the price
  • Simple installation
  • Compact overall dimensions
  • Low noise fan;
  • Long life cycle washable filter;
  • Drain pump;
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level system protection.
  • Pipeline length is up to 75 m (for high power models);
  • The possibility of selecting an indoor air temperature sensor for controlling.

Standard features

Function 8C
Auto-swing louver
24hr timer mode
Super silent
Multi-speed fan
Dehumidification function
Intelligent defrost function
Self-diagnosis error protection


Capacity Cooling kW 14,50
Heating kW 17,00
Electric power supply ~380-415 V/50 Hz/3 Ph
Rated input Cooling kW 5,20
Heating kW 4,80
Energy performance Cooling EER 2.94
Heating COP 3.54
Air flow Indoor unit m³/h 2000
Sound-pressure level Indoor unit dB (A) 54/52/50/48
Outdoor unit dB (A) 57
Type of refrigerant coolant R32
Volume of refrigerant coolant kg 3,60
Weight Indoor unit kg 36
Panel kg 6
Outdoor unit kg 112
Operational temperature range Cooling °C -20~48
Heating °C -20~24
Liquid piepeline diameter mm/inch 9,53/3/8"
Gas piepeline diameter mm/inch 15,88/5/8"
Maximum piepeline level difference m 30
Pipeline maximum length m 75
Number of interblock strands (for control)   mm² 2х0,75
Main power supply area Outdoor unit
Number of the strands (power supply) Indoor unit 3 (∅ 1,0mm²)
Outdoor unit 5 (∅ 1,5mm²)
Factory Freon fill ( for the number of the running meters) m 7,5
Freon per one running meter (surplus. for one running meter) g/m 40
SEER/SCOP 6,10/3,80
Energy performance class А++/А
