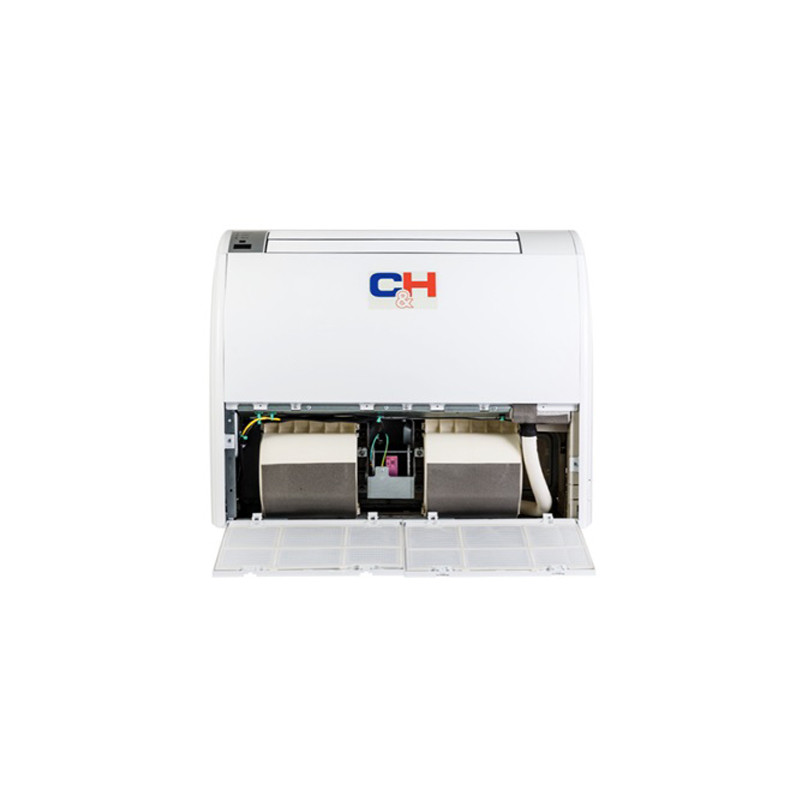

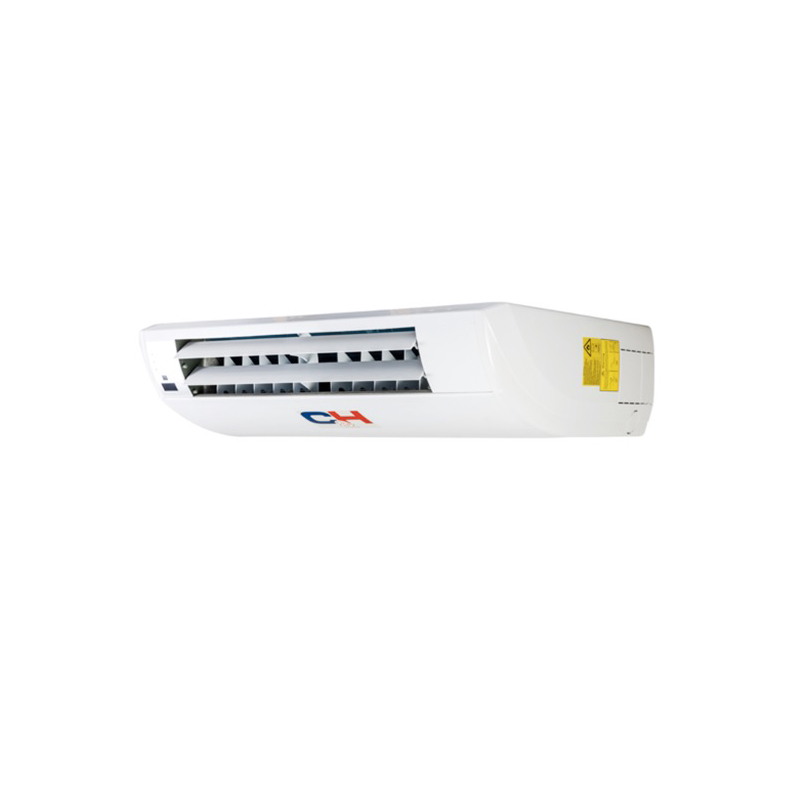

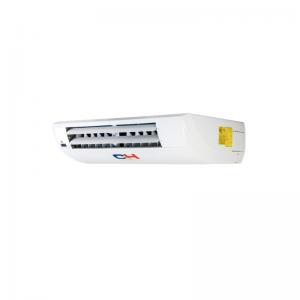

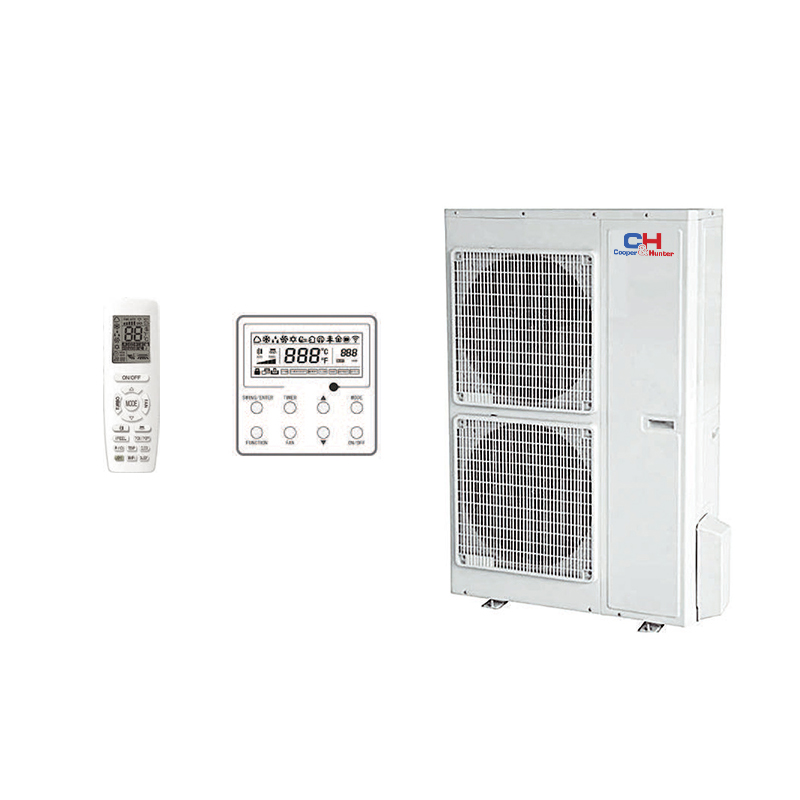

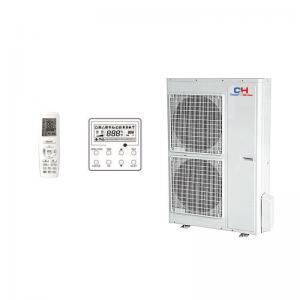

Nordic Commercial Series R Floor-ceiling type (Inverter) CH-IF085RK/CH-IU085RK

cooling 8.5 kW
Heating 8.8 kW
Find out the price
  • Simple installation
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level system protection;
  • Pipeline length is up to 75 m (for high power models).

Standard features

A++
Inverter
Function 8C
I-FEEL
LED display
Auto-swing louver
24hr timer mode
Auto-restart
Super silent
Sleep
R32
Multi-speed fan
Dehumidification function
Intelligent defrost function
Self-diagnosis error protection
Auto-protection

Specifications

Capacity Cooling kW 8,50
Heating kW 8,80
Electric power supply ~220-240 V/50 Hz/1 Ph
Rated input Cooling kW 2,80
Heating kW 2,65
Energy performance Cooling EER 3,04
Heating  COP 3,32
Air flow Indoor unit m³/h 1500
Sound-pressure level Indoor unit dB (A) 49/47/45/43
Outdoor unit dB (A) 53
Type of refrigerant coolant R32
Refrigerant coolant type kg 1,80
Weight Indoor unit kg 31
Outdoor unit kg 60
Operational temperature range Cooling °C -20~48
Heating °C -20~24
Liquid pipeline diameter mm/inch 9,53/3/8"
Gas pipeline diameter mm/inch 15,88/5/8"
Maximum pipeline level difference m 25
Pipeline maximum length m 50
Number of interblock strands (for control) mm² 2х0,75
Main power supply area Outdoor unit
Number of the strands
(power supply)
Indoor unit 3 (∅ 1,0mm²)
Outdoor unit 3 (∅ 2,5mm²)
Factory Freon fill ( for the number of the running meters) m 5
Freon per one running meter (surplus. for one running meter) g/m 40
SEER/SCOP 6,10/4,00
Energy performance class А++/А+
